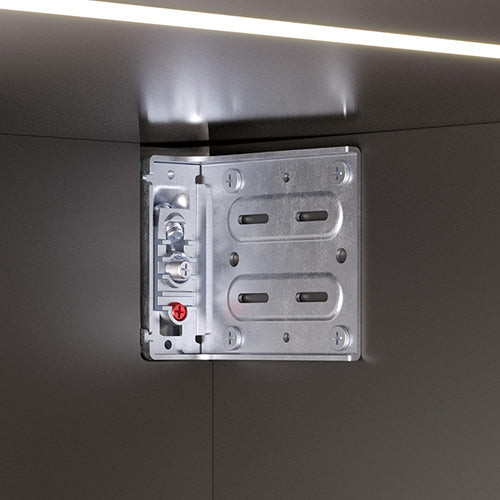

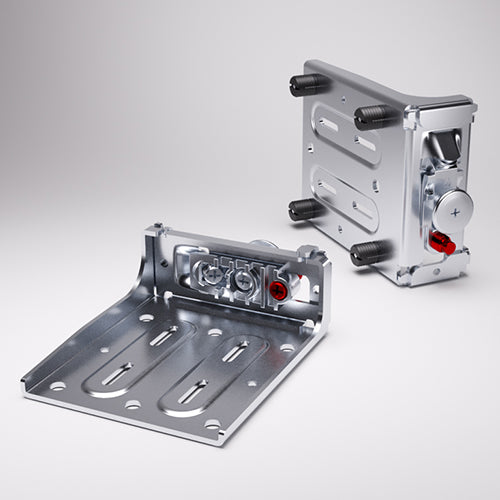

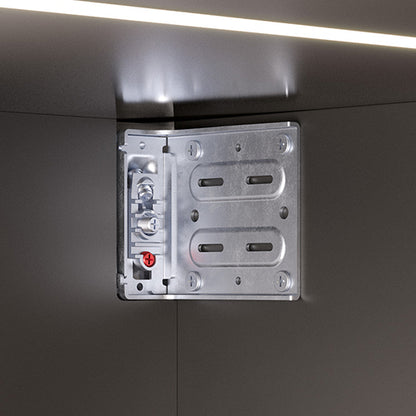

Cabinet hangers and wall plates ITALIANA Libra H11
Tax excluded.
The Libra H11 is a versatile solution for suspended base units in furniture. With easy installation and slim side plates, it maximizes inner space. It includes an anti-turnover device and suggests using the integrated Libra WP13.
Detail:
- Area of application For wall cabinet
- Material Zink alloy, steel
- Colour/finish Zinc-plated
- Adjustment facility Vertical adjustment 12 mm
- in-depth adjustment 10 mm
- Anti-turnover locking
Set Comprises:
1 pcs 63425010ZN - Hanging bracket LIBRA H11 left
1 pcs 63425020ZN - Hanging bracket LIBRA H11 right
12 pcs 60507030ZN - Euro screw pan head Ø5,9 L.14mm
1 pcs 63450180ZN - WP13 wall plate to be split in two pcs H39 L140 th.3mm
1 pcs 63490720AB - LIBRA H11 cover cap white right
1 pcs 63490710AB - LIBRA H11 cover cap white left
Download
Video
Technical Sheet
