Cabinet hangers and wall plates ITALIANA Libra H3

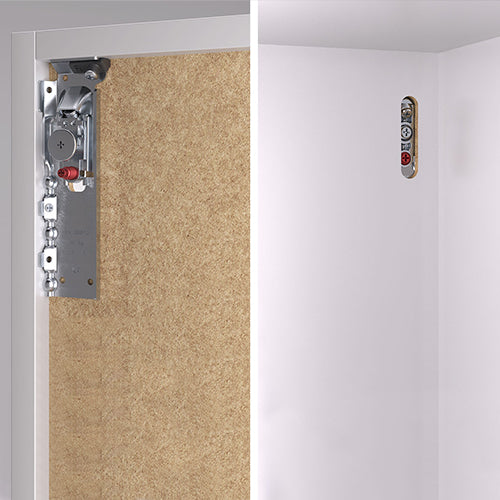

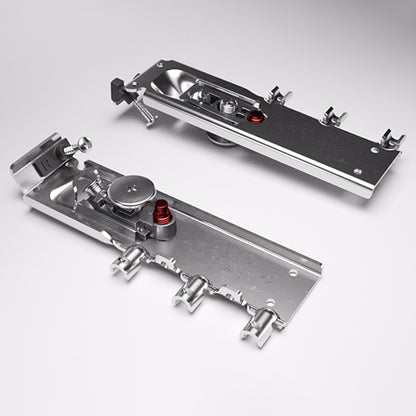

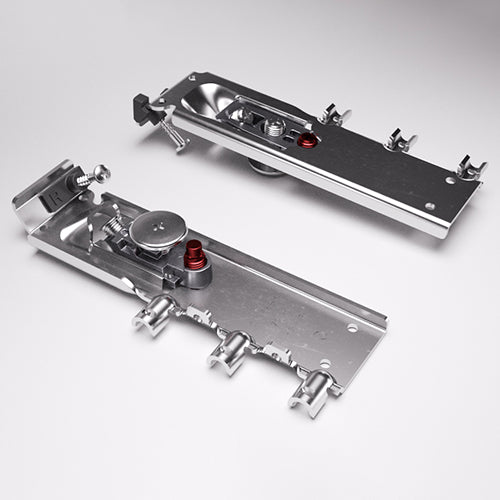

For a durable and trustworthy option, consider LIBRA - the innovative family of CABINET HANGERS and WALL PLATES designed to meet all of your needs. Easy to install, LIBRA hangers are placed behind the rear panel with only small cover caps visible inside the cabinet. The zinc-coated steel body provides reliable strength, while all models in the LIBRA family come equipped with a patented ANTI-TURNOVER device. H3, a member of the LIBRA family, is a left/right cabinet hanger with three semi-circular pins and an optional pre-inserted screw for the top. It requires three Ø10mm drillings with 12mm depth on the sides. The LIBRA family also includes 5 types of wall plates and 1 type of wall bar.

Detail:

• Area of application For wall cabinet
• Load capacity 70 Kg per piece
• Material Zink alloy, steel
• Colour/finish Zinc-plated
• Adjustment facility Vertical adjustment 13 mm
• in-depth adjustment 12 mm
• Anti-turnover locking

Set Comprises:

1 pcs 63420120ZN - LIBRA H3 hanger pins D.10 right Zk

1 pcs 63420130ZN - LIBRA H3 hanger pins D.10 left Zk

1 pcs 63450015ZN - WP1 wall plate to be split in two pcs Zk

2 pcs 63461010AB - Oval cover cap CC1 f.LIBRA D.12 plastic white
