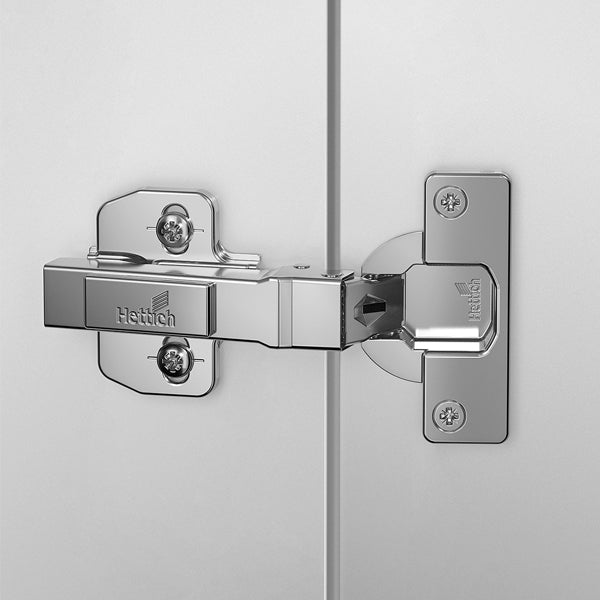

Hettich Novisys 105° hinge with integrated silent system

Specification:

• Novisys 105° hinge
• With integrated Silent System, with self closing feature (Novisys 8848i)
• Quality classification under EN 15570, Level 2
• Opening angle 105°
• For door thickness 14 - 24 mm
• Door mounting option

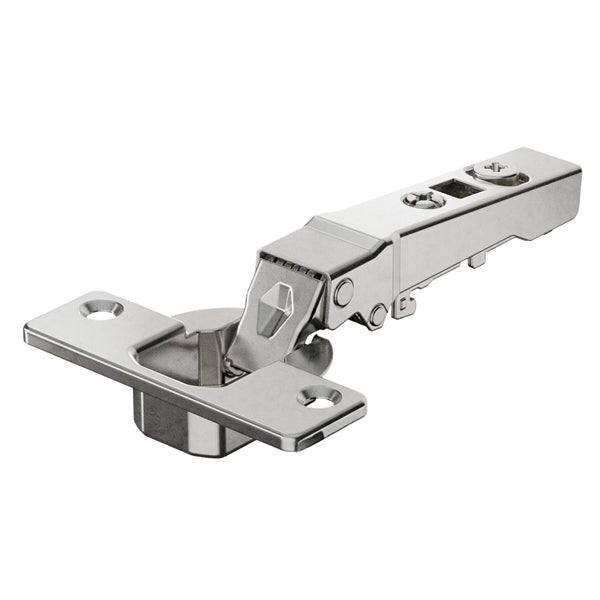

1. 1. Overlay

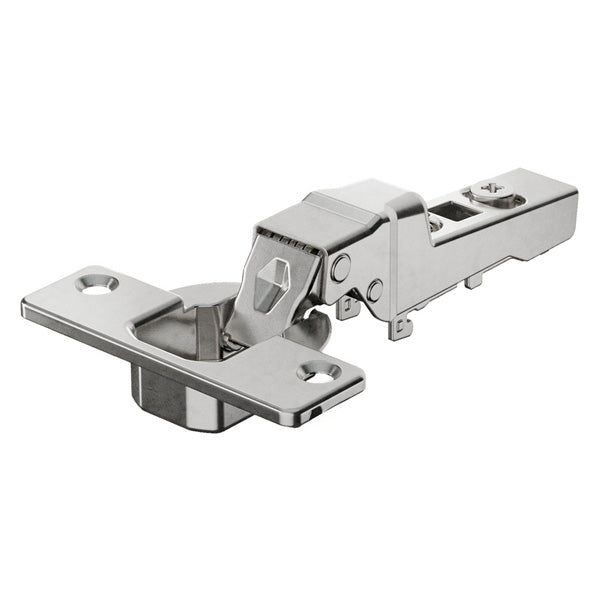

   2. Half Overlay

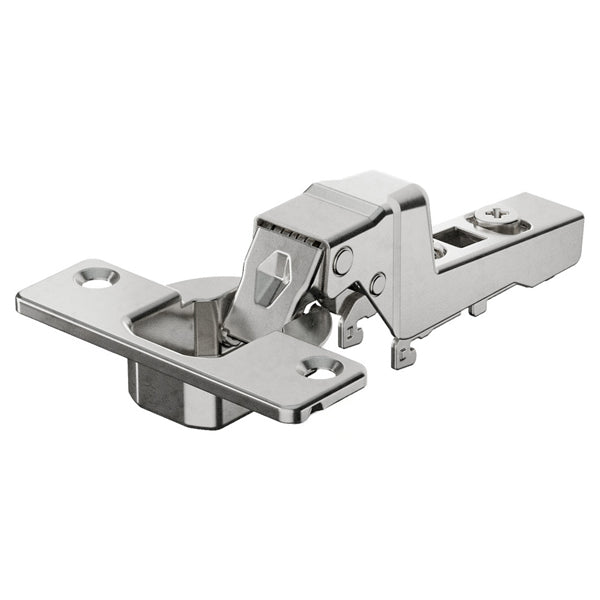

   3. Inset

• TB - drilling pattern 45 x 9.5 mm
• Cup depth 11.8 mm
• Installation for pressing in
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +2.8 mm / -1.2 mm
• Height adjustment at mounting plate
• steel nickel plated

Set Comprises:

• 2 pcs Hinge novisys with integrated softclose

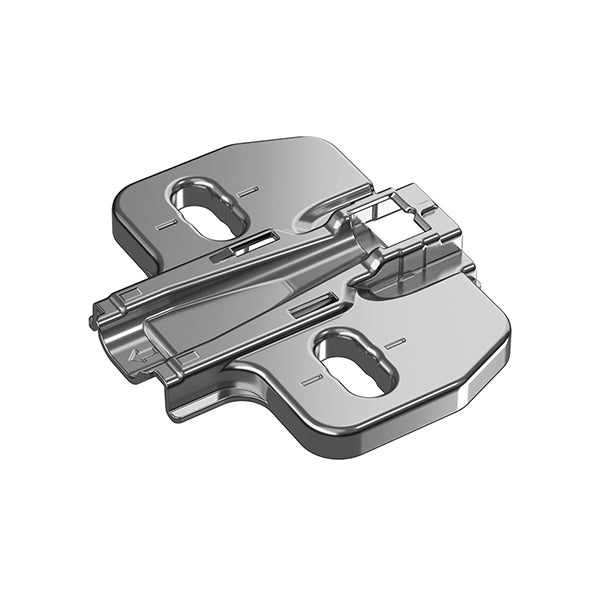

• 2 pcs mounting plate

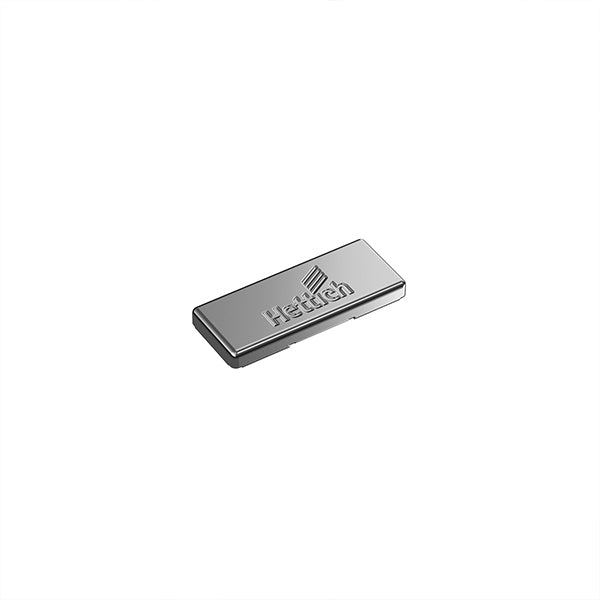

• 2 pcs cover cap arm

Technical Sheet:
