Hettich Runner Quadro V6 with Catch

Hettich Runner Quadro V6 with Catch

The classic – always captivating

The classic Quadro V6 full extension runner for wooden drawers with 30 kg load capacity has lost nothing of its fascination. Smooth running action, durability and, thanks to the ball bearing principle, its proverbial long lasting quality make it the benchmark for concealed, under base drawer runners. Design furniture that's made to last with strong, sturdy fittings and benefit from compelling cost efficiency in the bargain. That's what makes the Quadro V6 so unique.

Spesification:

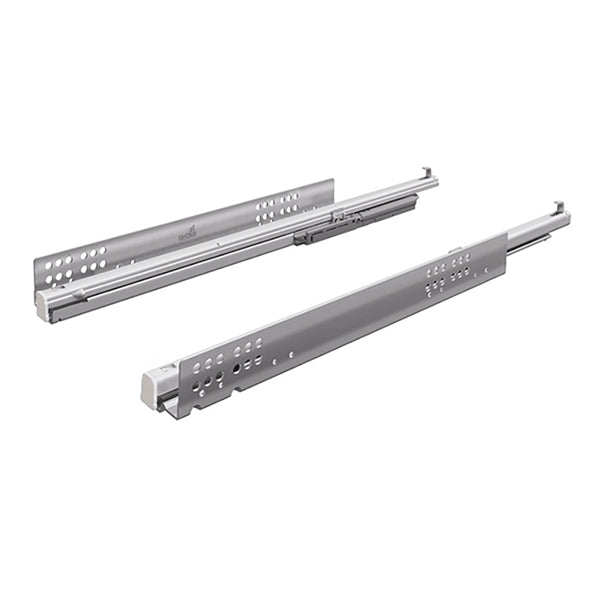

Runner Quadro V6

• Full extension runner
• Slide on installation
• Suitable for drawers with a side profile thickness of up to 16 mm
• Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
• Load capacity up to 30 kg
• Load capacity to EN 15338 Level 3
• Galvanised steel

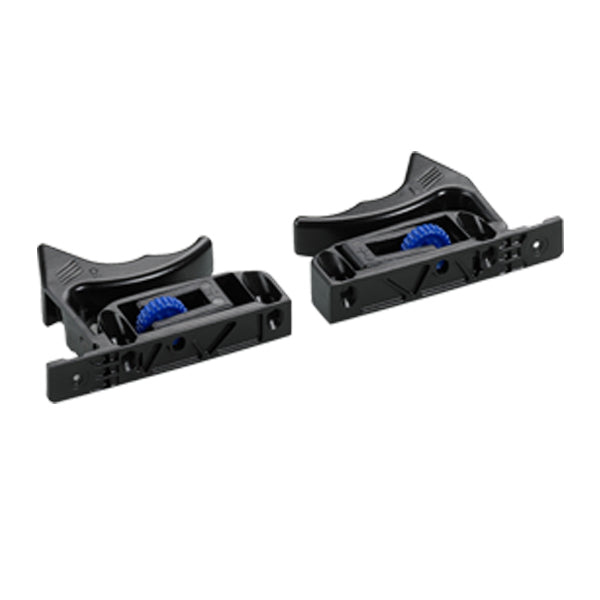

Catch

• Continuosly variable height adjustment up to + 2 mm
• Plastic, black

Set Comprises:

1 Set Runner Quadro V6 Left & right

1 set catch left & right
