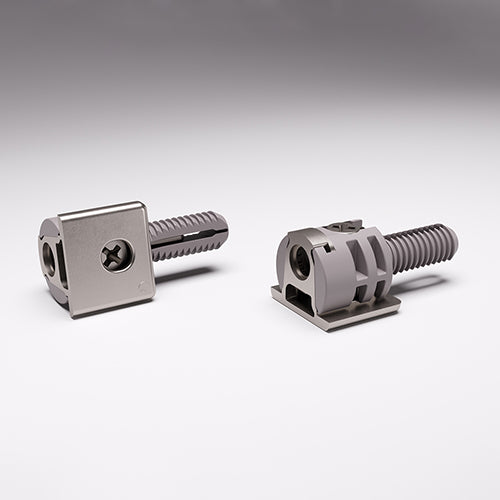

Shelf Support ITALIANA Poker

Shelf Support ITALIANA Poker

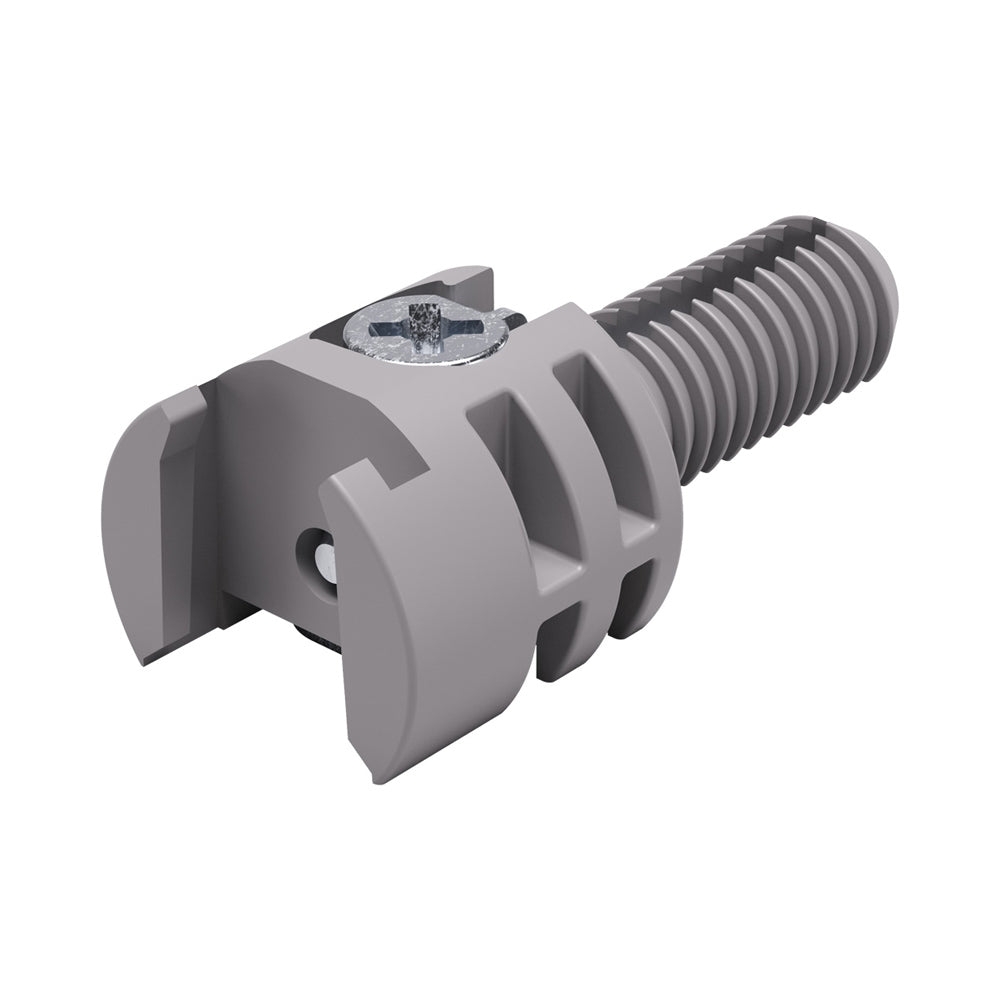

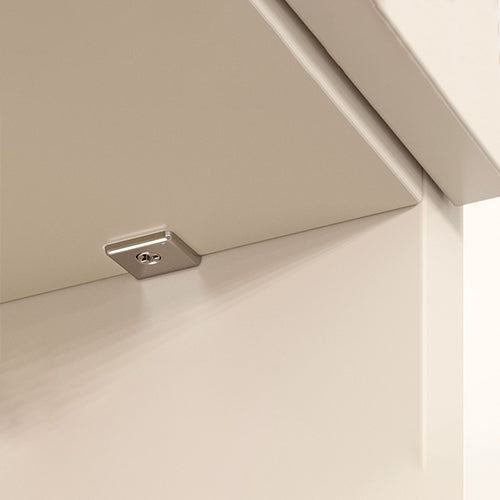

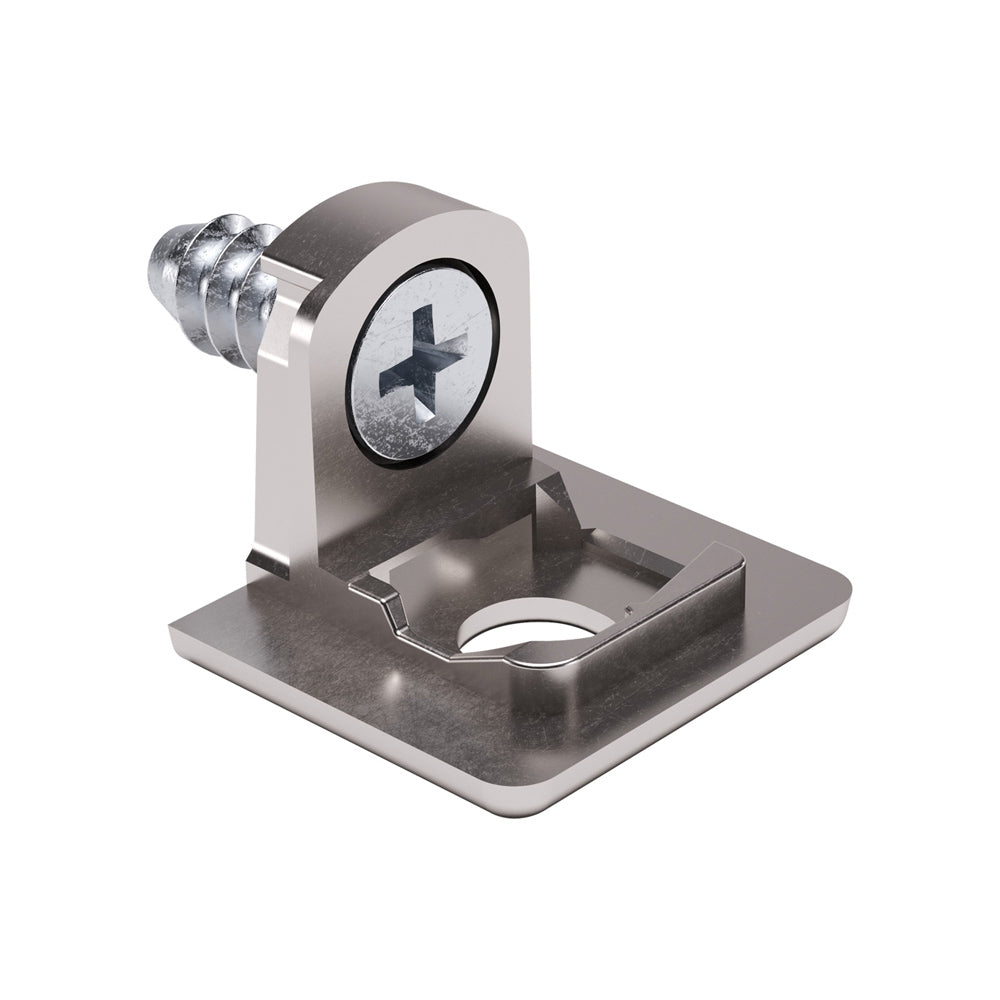

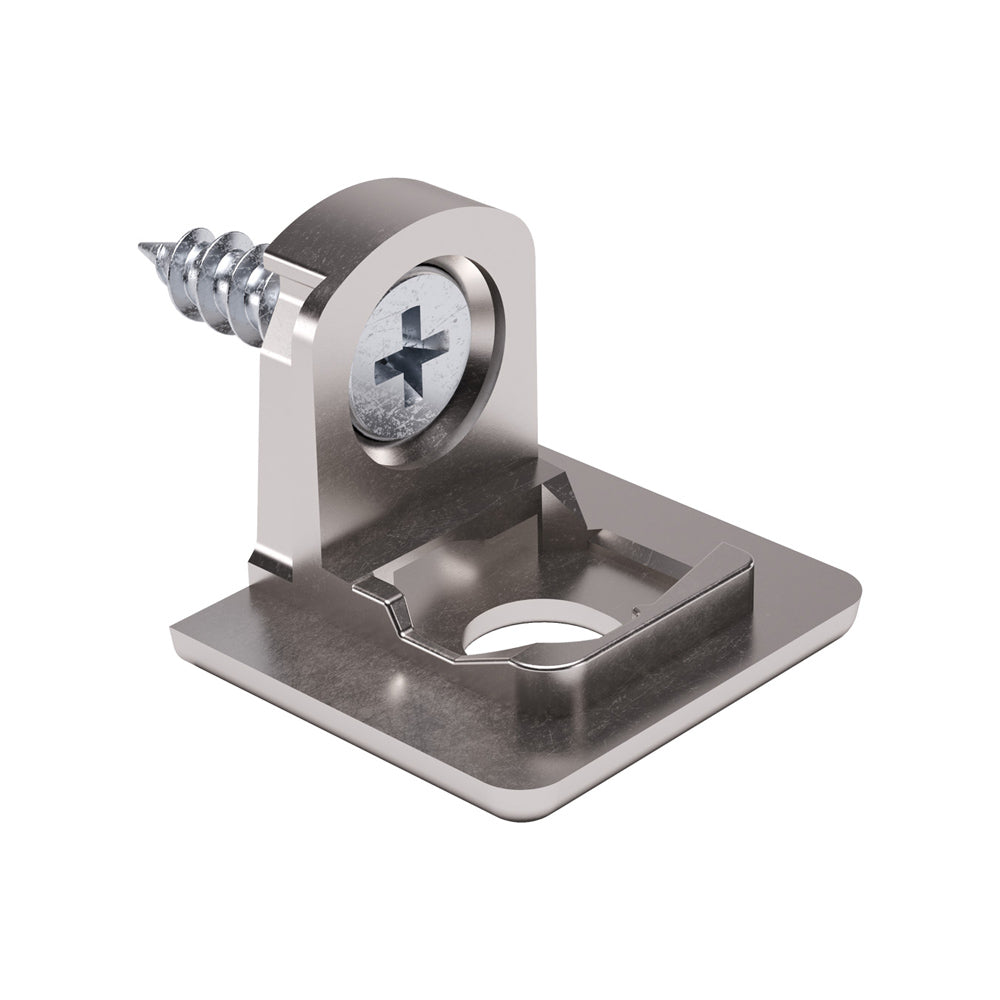

POKER is a wood shelf support to be slotted into the panel by making edge borings. It allows to join together any side and shelf, including bottom and top, without using any further connecting fitting. The sleeve expands by inserting the provided pin, which improves the structural fastening of the panel to the sides of the furniture. The panel has to be pushed downwards onto the side brackets, which can be screwed into any position required. The side bracket slots into the socket of the shelf supports and a click locks the panel in position. By turning the mini fix placed inside the shelf support 90° anticlockwise from the bottom, the shelf and top panel collide with the sides, providing a structural fastening. An optional through hole Ø8 mm allows you to fix also the bottom panel from the top by turning the mini fix 90° anticlockwise.

Set Comprises:

Poker Screw

• 20pcs - POKER SL18 screw 4x16 tot. Nk
• 20pcs - Nylon support for POKER 18mm w/pin grey/Zk

Poker Euro

• 20pcs - POKER SL18 screw 4x16 tot. Nk
• 20pcs - Nylon support for POKER 18mm w/pin grey/Zk

Technical Sheet
