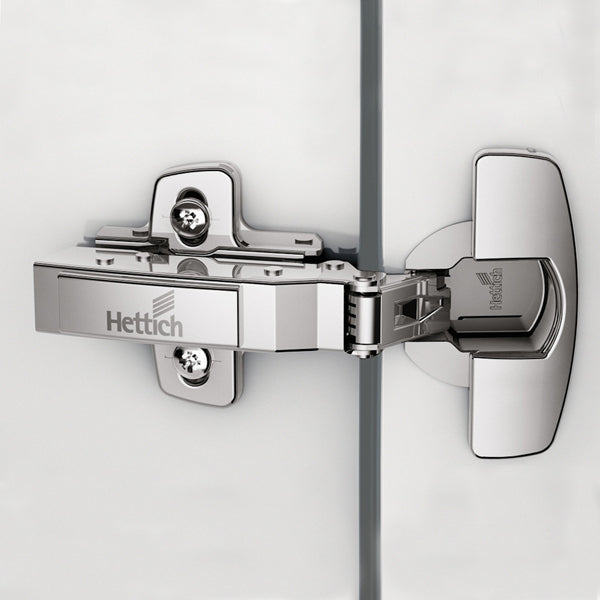

Hettich Sensys 110° Hinge

Hettich Sensys 110° Hinge , nickel plated, overlay, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm

Spesification:

• Sensys 110° hinge
• With integrated Silent System, with self closing, Without integrated Silent system
• Quality classification under EN 15570, Level 3
• Opening angle 110 °
• For door thickness 15-24 mm
• Door mounting option:

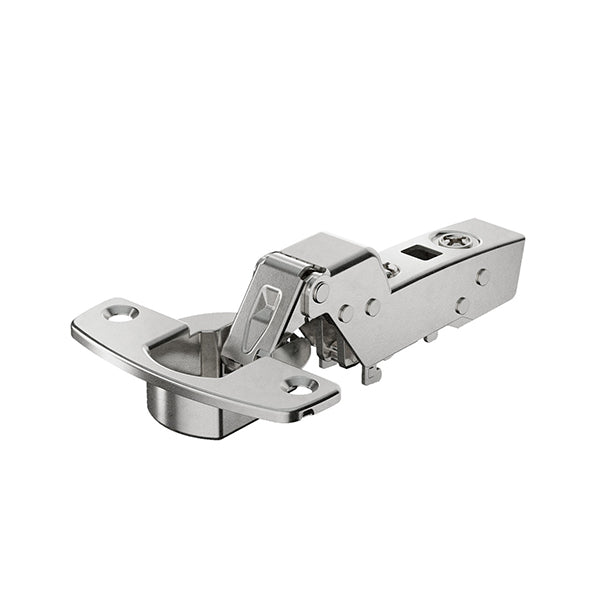

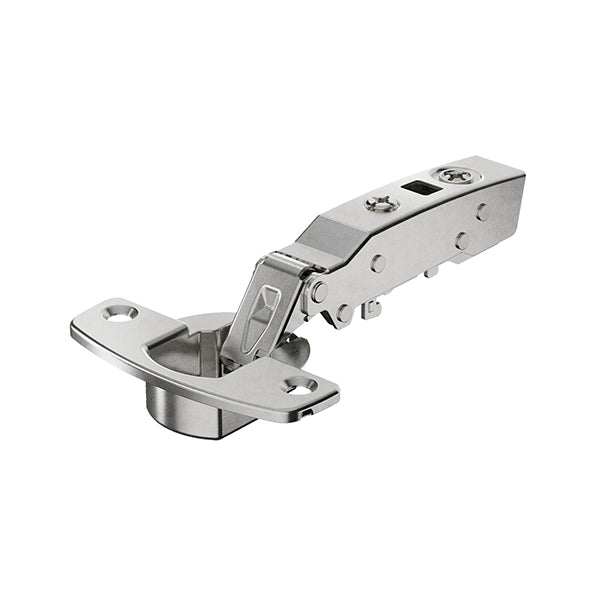

  • overlay (B 12.5 mm)

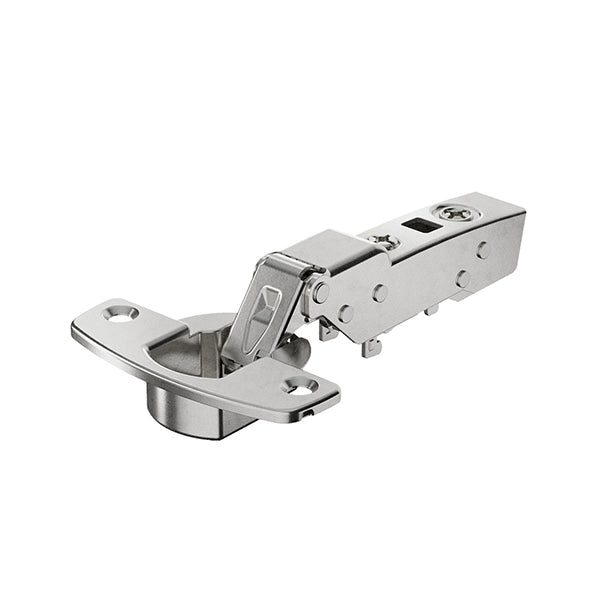

  • half overlay (B 3 mm)
  • inset (B -4 mm)
• TH - drilling pattern 52 x 5.5 mm
• Cup depth 12.8 mm
• Installation for screwing on (TH 52)
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated

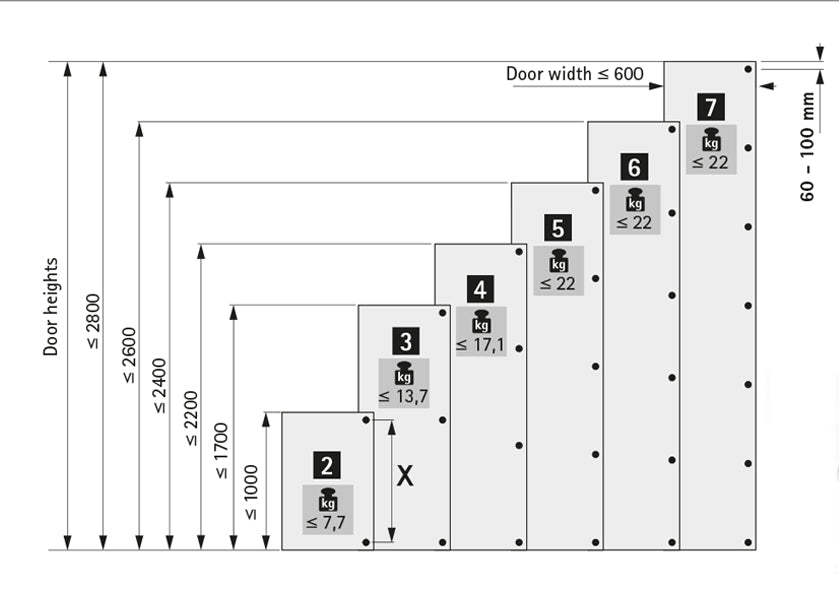

Technical Sheet:
