Glass Shelf Support ITALIANA Kubic

Name: Glass Shelf Support ITALIANA Kubic
Brand: ITALIANA
Price: 325240.0 IDR
Availability: InStock

Rp 325.240,00

Tax excluded.

KUBIC upper part glass (Size):

Whitout Rubber 5/9 mm With Rubber 4/8 mm

Variant

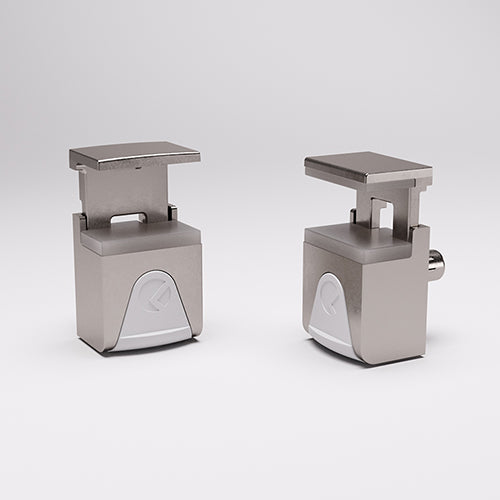

KUBIC is a locking glass shelf support designed to align with the contemporary aesthetic trends prevalent in the market.

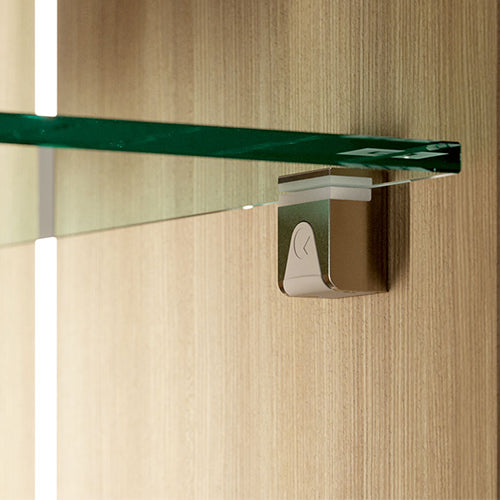

Its purpose is to provide a solution for the transportation of furniture with glass shelves already assembled. The glass shelf can be locked and unlocked manually, eliminating the need for additional tools. In accordance with applicable functional and safety standards, the glass is blocked on both the upper and lower sides by soft rubber layers.
This product is suitable for use with glass shelves measuring between 4 -9 mm in thickness.

Detail

Area of application :For glass shelves

Material: Zinc Alloy

For drill hole: Ø5mm

Pin length: 7,5mm

Support for glass size: 5/9mm & 4/8mm

Set Comprises:

ITASET0024
20pcs 16019020YA - KUBIC main body pin Ø5 Nk/Grey

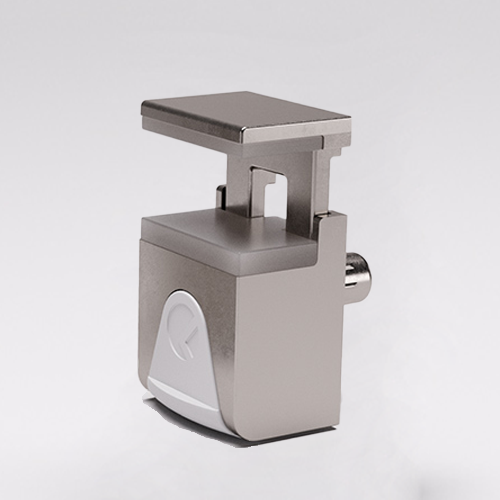

20pcs 16019140YA - KUBIC upper part w/rubber glass 4/8mm Nk

ITASET0025
20pcs 16019020YA - KUBIC main body pin Ø5 Nk/Grey

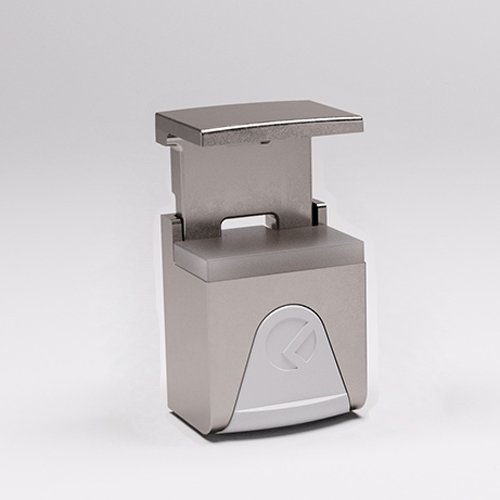

20pcs 16019130YA -KUBIC upper part w/o rubb glass 5/9mm Nk

Technical Sheet:

Download

INSTALLATION MANUAL

Video
