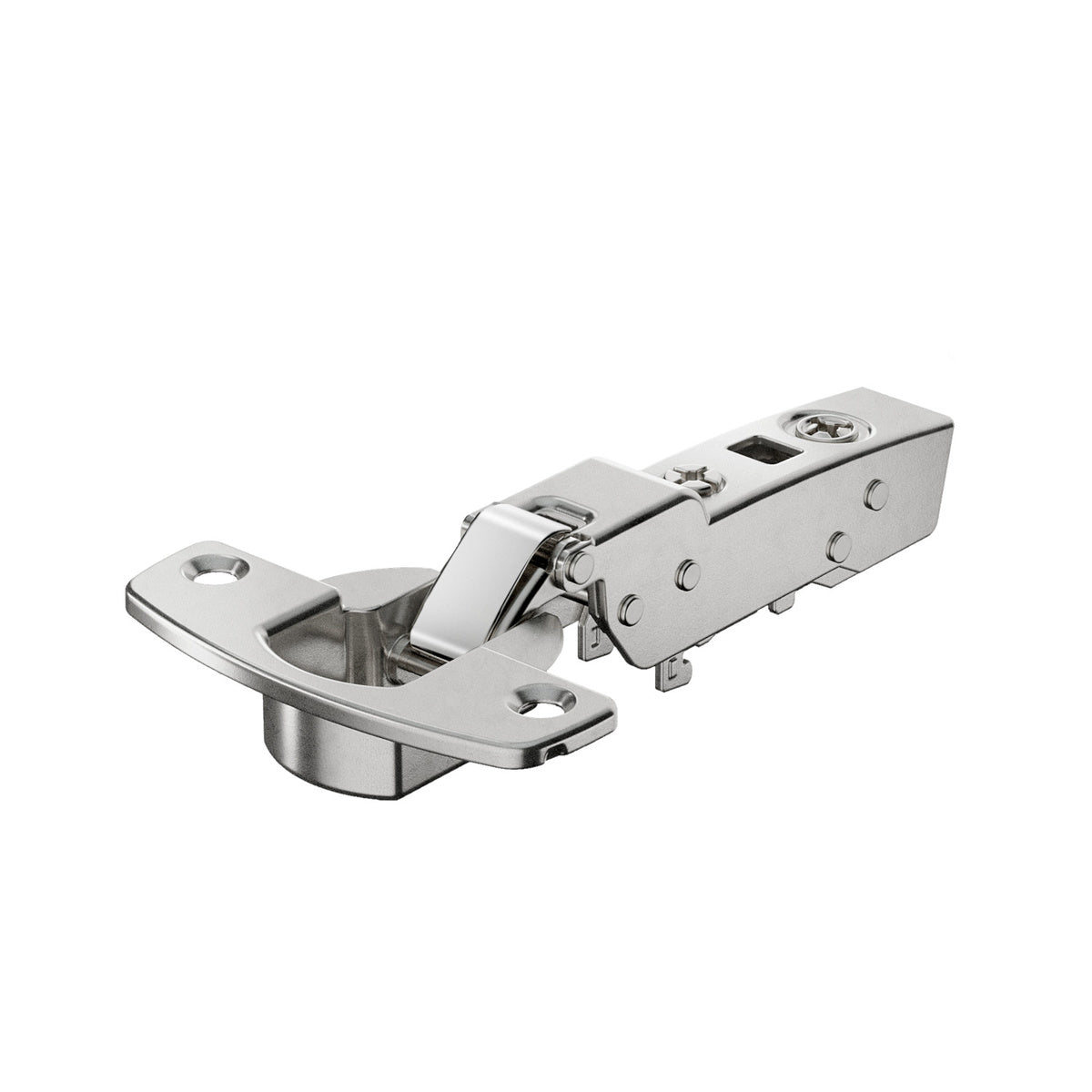

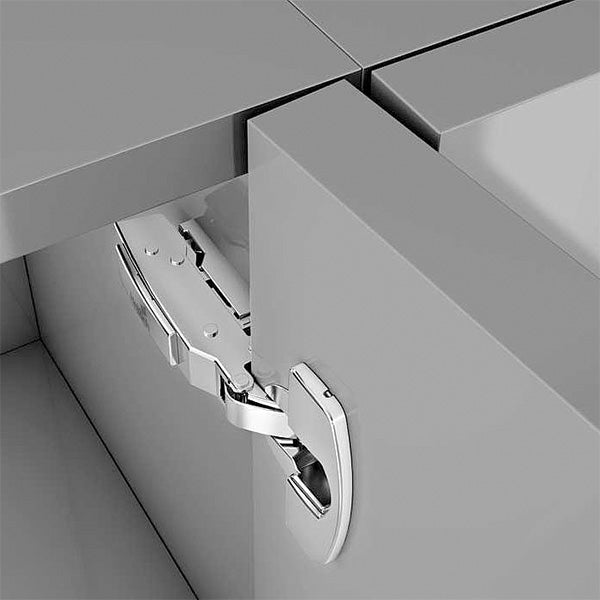

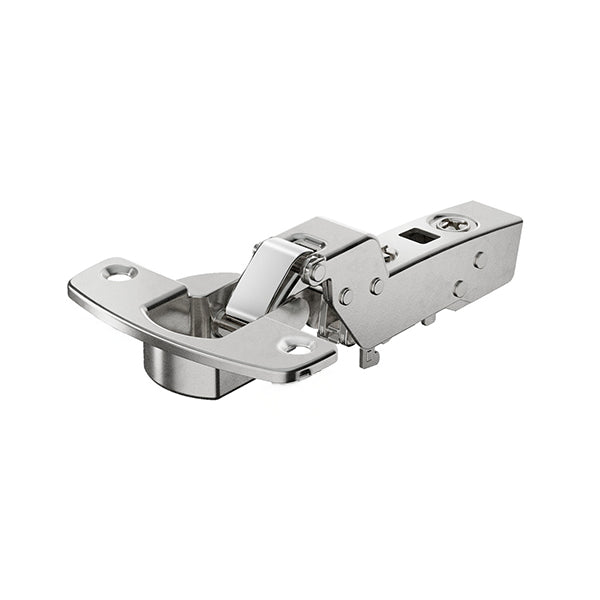

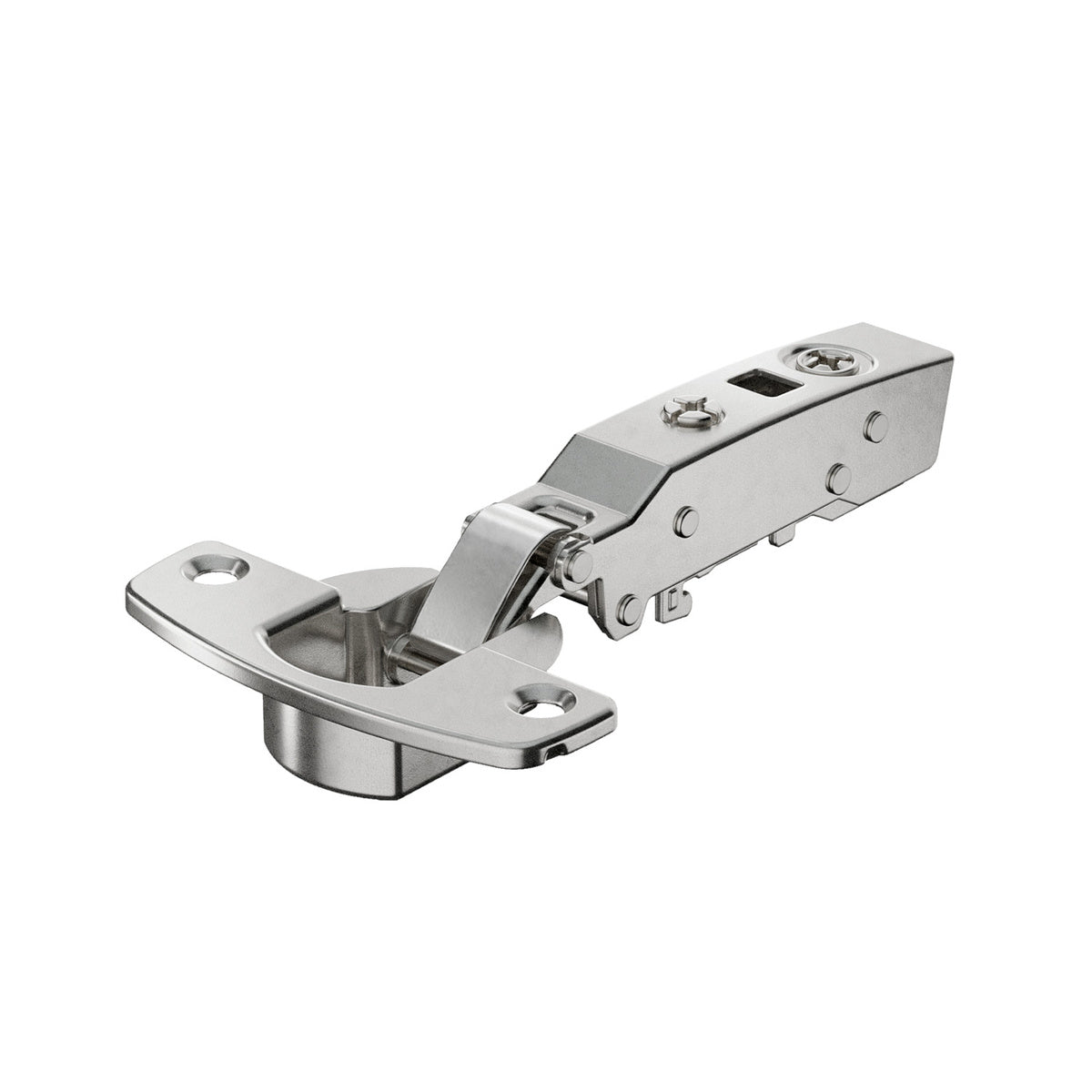

Hettich Sensys 95° Hinge

This Sensys door hinge fits doors 15 to 32 mm thick and opens up to 95°. It has a built-in Silent System with self-closing for smooth, quiet closing. The hinge is easy to install with screws and offers adjustable overlay, depth, and height for a perfect fit. Made from durable nickel-plated steel, it meets quality standards for reliable use.

Spesifikasi

• Sensys thick door hinge, door thickness up to 32 mm
• With integrated Silent System, with self closing feature (Sensys 8631i)
• Without Silent System, with self closing feature (Sensys 8631)
• Quality classification under EN 15570, Level 2
• Opening angle 95°
• For door thickness 15-32 mm
• Door mounting option:
  • Overlay (B 12.5 mm)
  • Half overlay (B 3 mm)
  • Inset (B -4 mm)
• TH - drilling pattern 52 x 5.5 mm
• Cup depth 12.8 mm
• Installation for screwing on (TH 52)
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated

Set Comprises:

• 1 pcs Hinge Hettich opening angle 95° with Integrated silent system / without silent system
  • Overlay
  • Half overlay
  • inset

Technical Sheet
