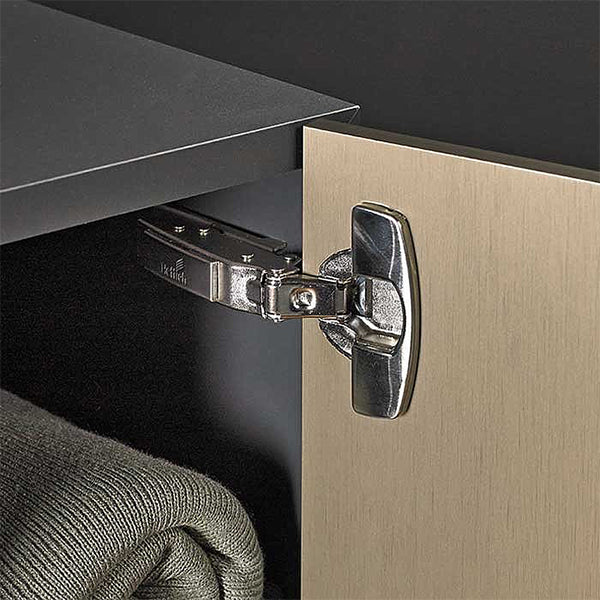

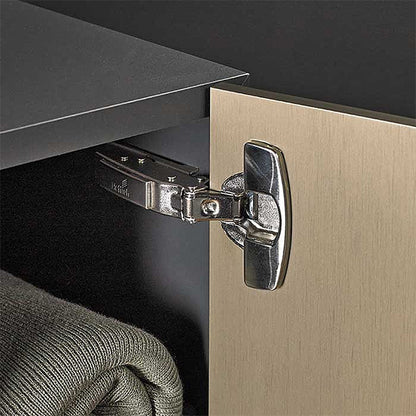

Hettich Sensys Thin Door 110° Hinge

Spesification:

• Sensys thin door hinge, door thickness from 10 mm
• With integrated Silent System, with self closing feature
• Quality classification under EN 15570, Level 3
• Opening angle 110°
• For door thickness 10-19 mm
• Door mounting option:

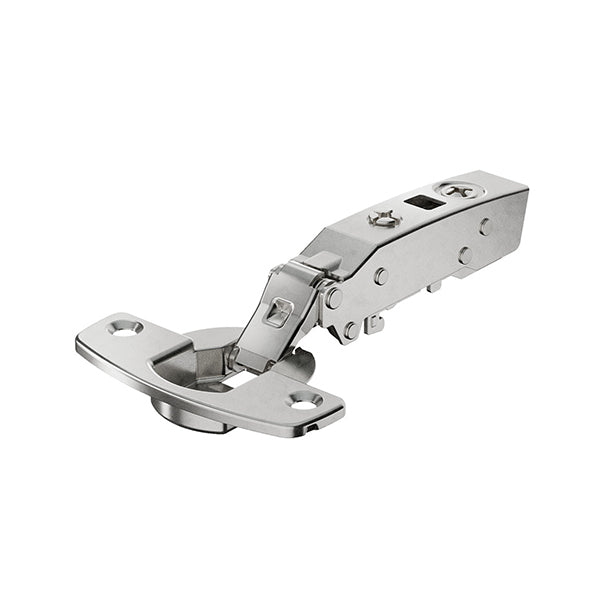

1. 1. overlay (B 12.5 mm)

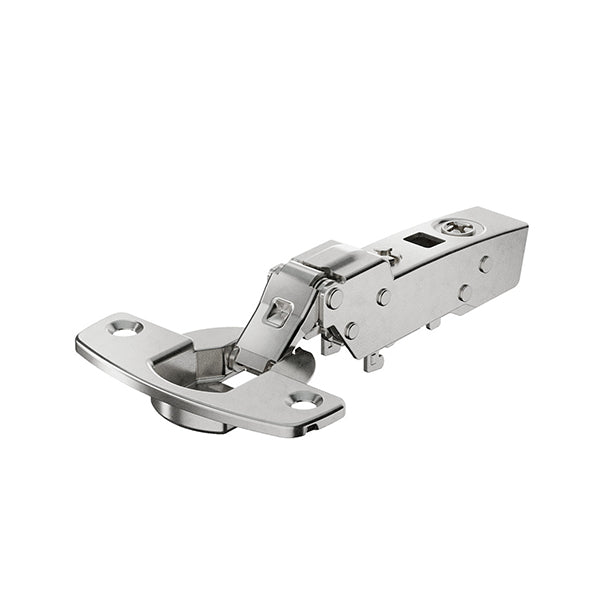

   2. half overlay (B 3 mm)

• TH - drilling pattern 52 x 5.5 mm
• Cup depth 7.8 mm
• Installation for screwing on (TH 52)
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated

Technical sheet:
