Shel Support ITALIANA Maori

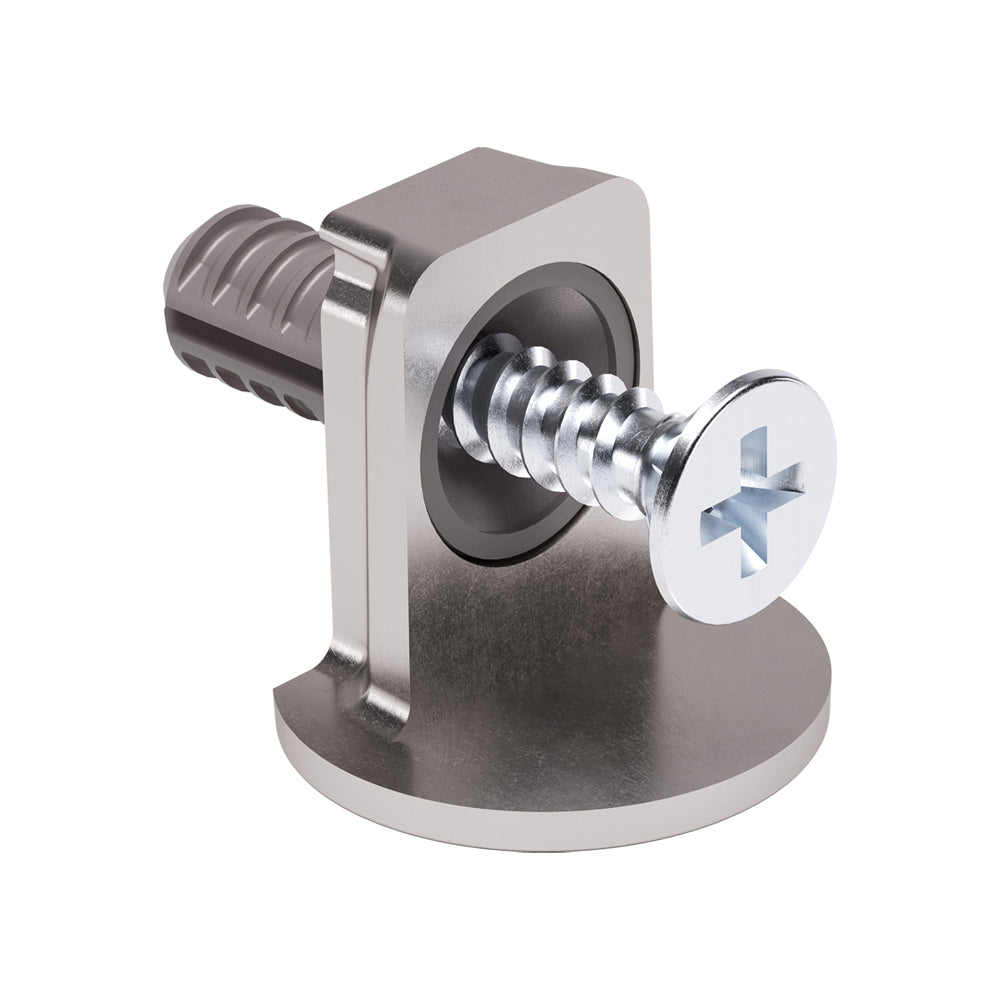

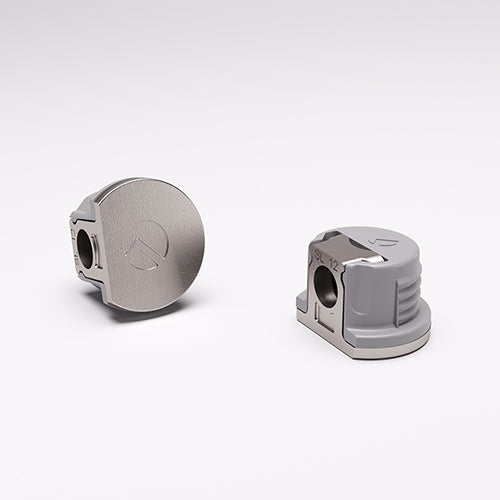

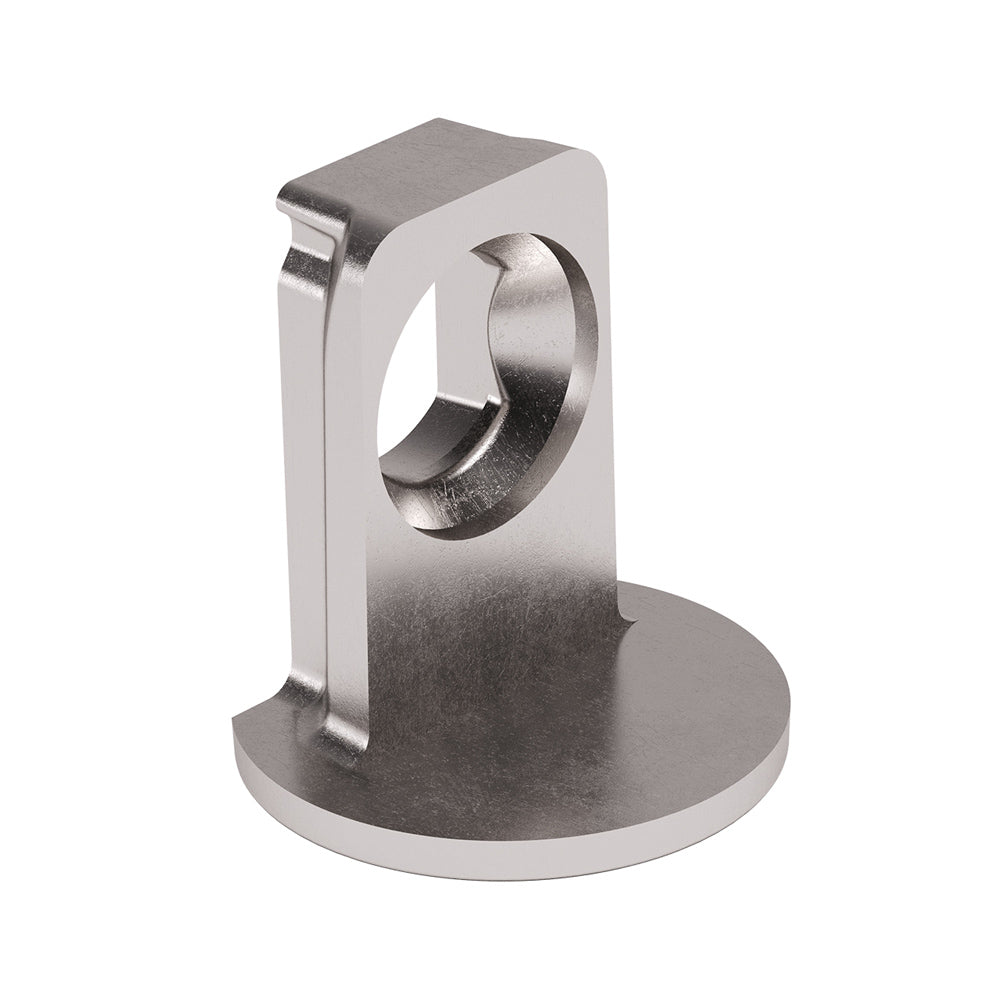

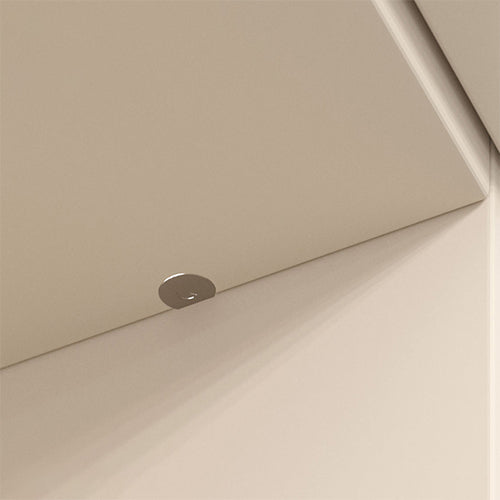

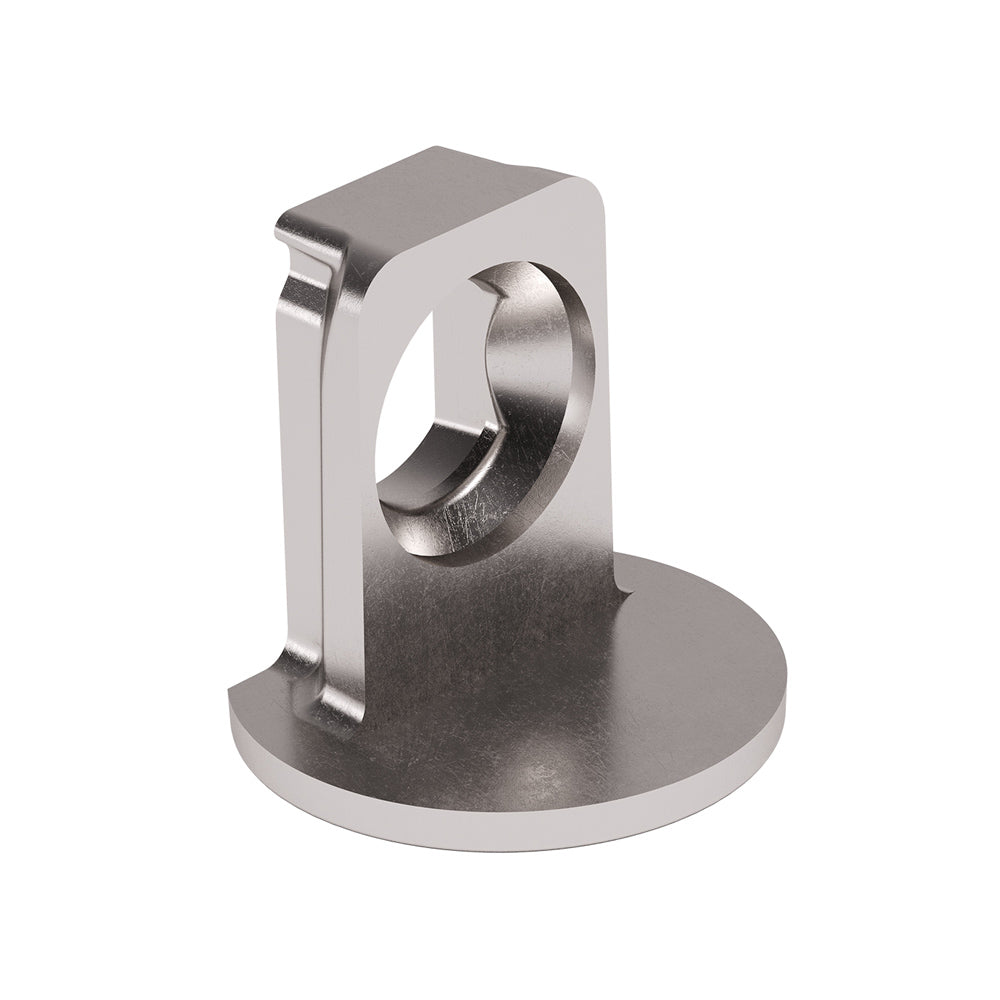

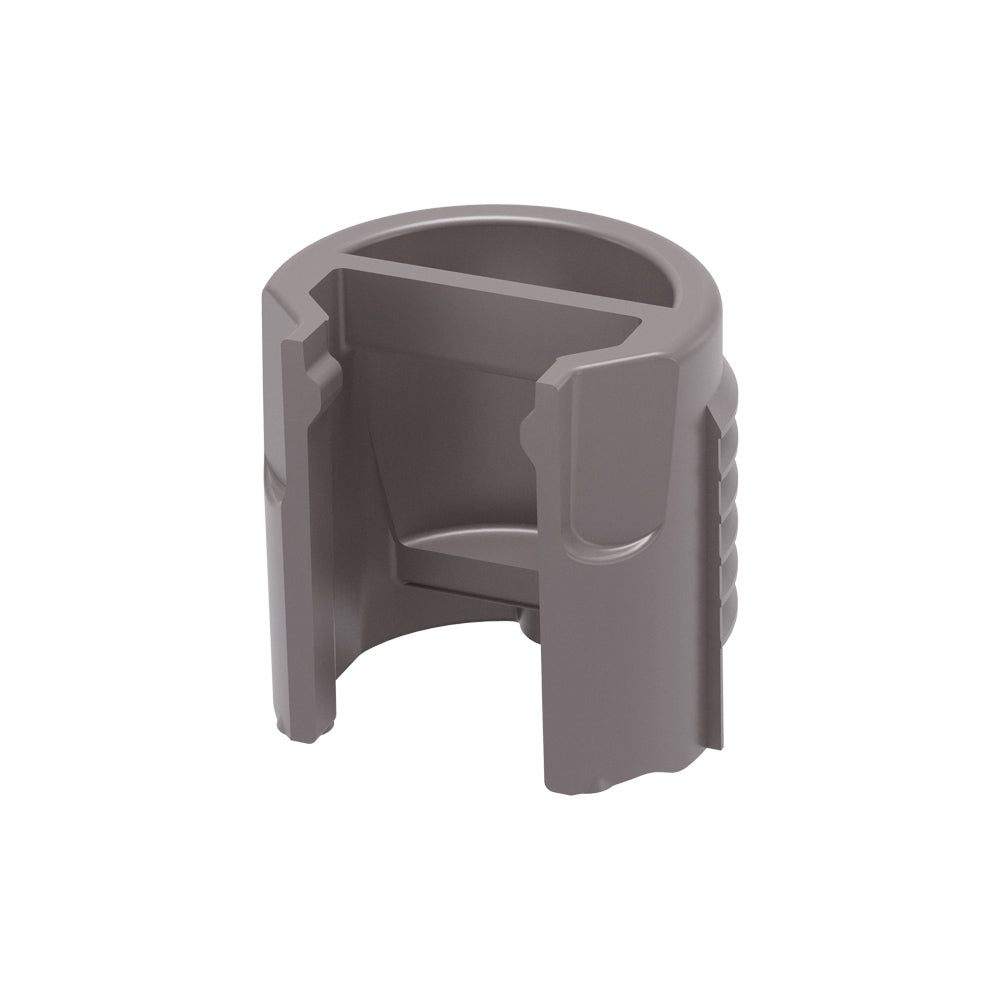

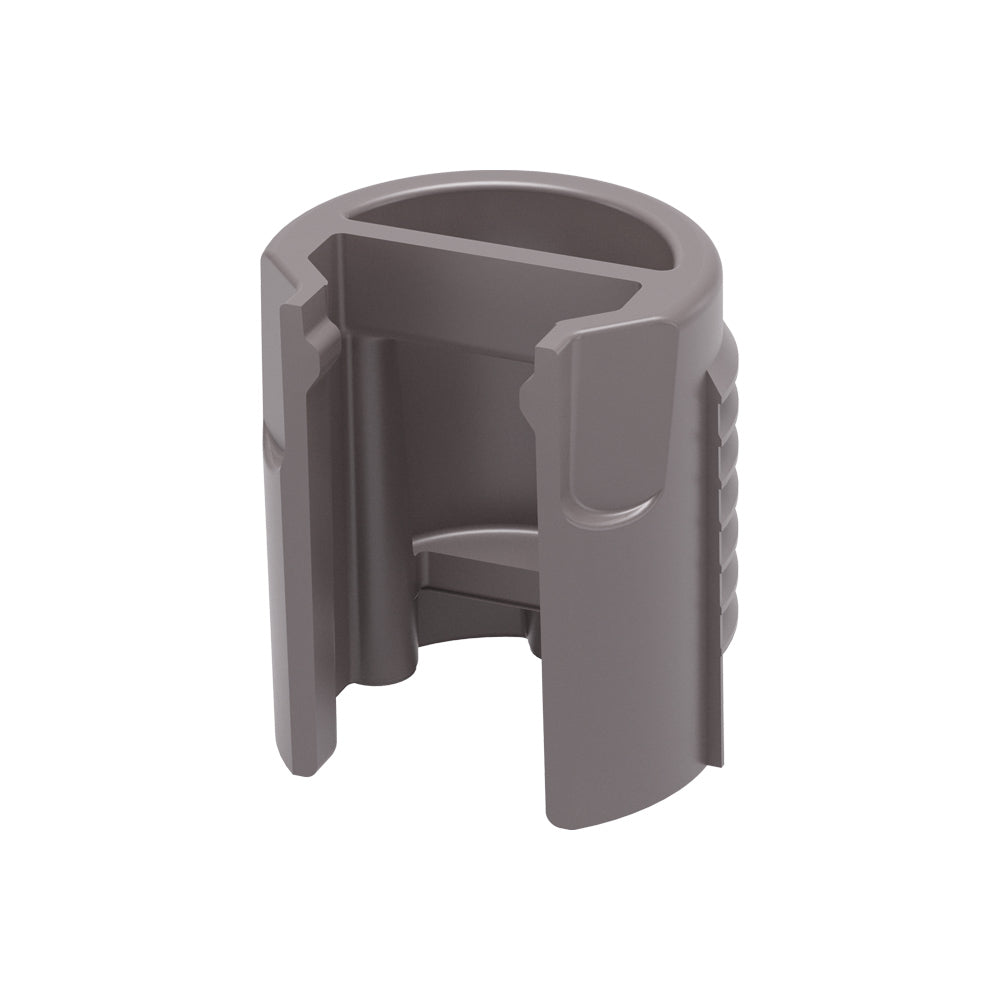

MAORI is a wood shelf support to be slotted into the panel by making face borings. It is ideal for modular cabinets, bookcases and modular furniture sporting a wide range of thicknesses. In fact MAORI can be used for shelves with minimum thickness of 12mm. The small side bracket round ledge flushes with the lower side of the shelf making it aesthetically very elegant. The panel has to be pushed downwards onto the side brackets, which can be screwed into any position required. The side bracket slots into the socket of the shelf supports and a click locks the panel in position. On the shelves more than 12 mm thick, it is possible to fix the plastic support permanently using an additional Ø3mm screw.

Maori is Available in 2 size:

• 16mm
• 18-19mm

Detail:

Maori 16mm

• Min Thickness panel 15-16mm
• Diameter Ø12
• Drilling Dept 12,5mm

Maori 18-19mm

• Min Thickness panel 18-19mm
• Diameter Ø12
• Drilling Dept 14mm
