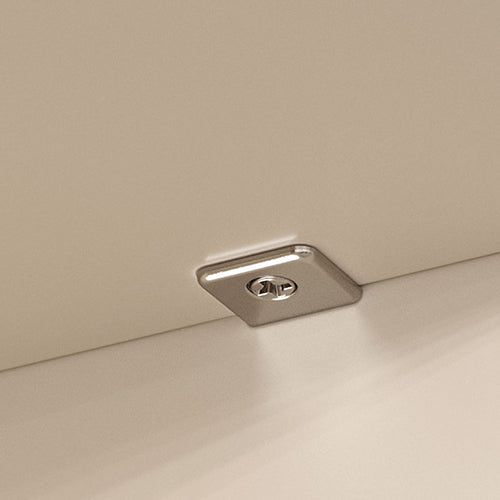

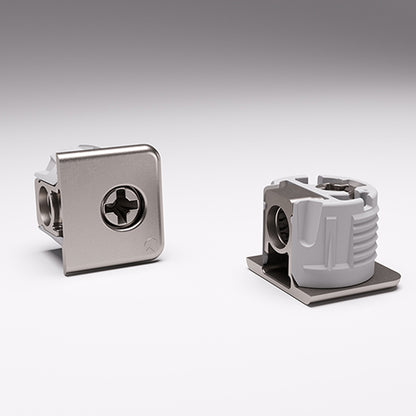

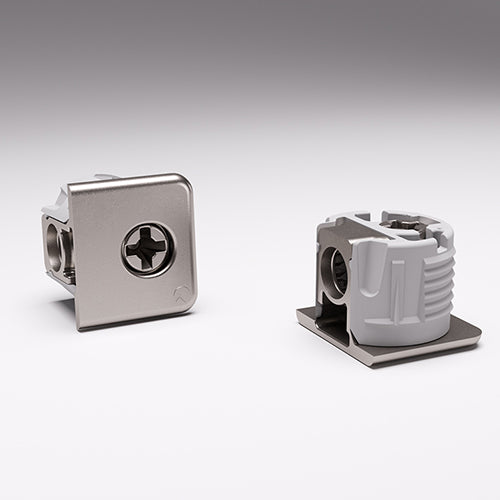

Shelf support ITALIANA PK2

PK2 is a wood shelf supports to be slotted into the panel by making face borings. It allows to join together any side and shelf, including bottom and top panels, without using any further connecting fitting. The panel has to be pushed downwards onto the side brackets, which can be screwed into any position required. The side bracket slots into the socket of the shelf supports and a click locks the panel in position. The mini fix within the plastic insert provide a strong structural fastening. By turning the mini fix placed inside the shelf support 90° clockwise from the bottom, the shelf and top panel collide with the sides, providing a structural fastening. An optional through hole Ø8 mm allows you to fix also the bottom panel from the top by turning the mini fix 90° counterclockwise.

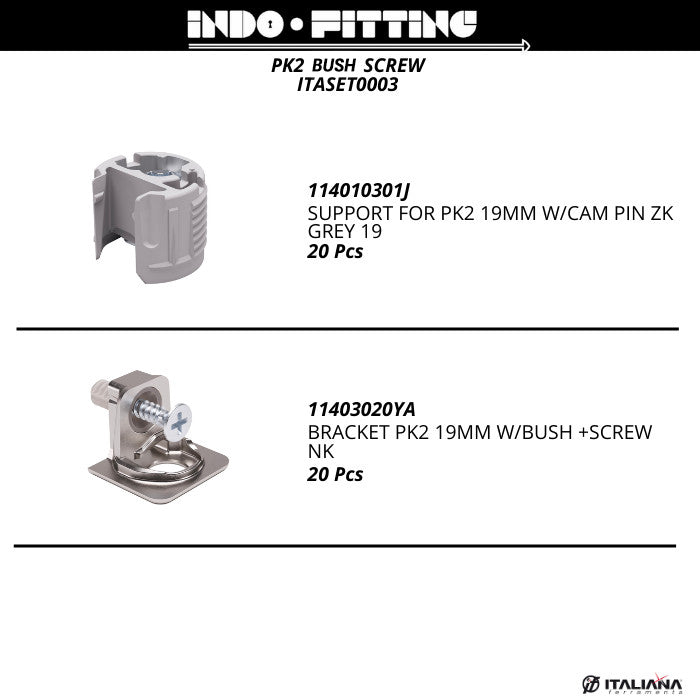

Set Comprises:

PK2 with Bush Screw

• 20pcs - Bracket PK2 19mm with bush+screw Nk
• 20pcs - Support for PK2 19mm w/cam pin ZK grey19

PK2 with Euro Screw

• 20pcs - Bracket PK2 19mm w/euro screw L13mm TOT ass Nk
• 20pcs - Support for PK2 19mm w/cam pin ZK grey19

Technical sheets:

Pk2 with Bush Screw

PK2 with Euro Screw
