Cabinet hangers and wall plates ITALIANA Libra H11

Name: Cabinet hangers and wall plates ITALIANA Libra H11
Brand: ITALIANA
Price: 271700.0 IDR
Availability: InStock

Rp 271.700,00

Tax excluded.

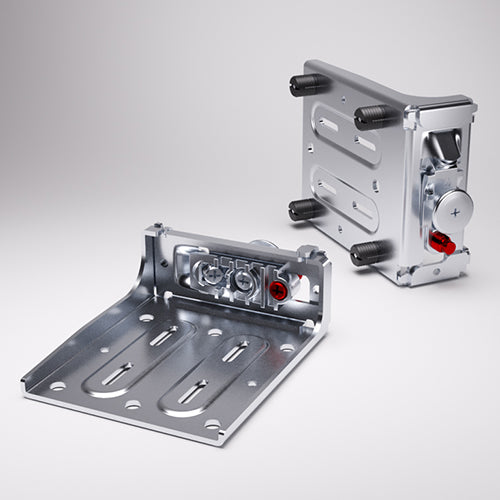

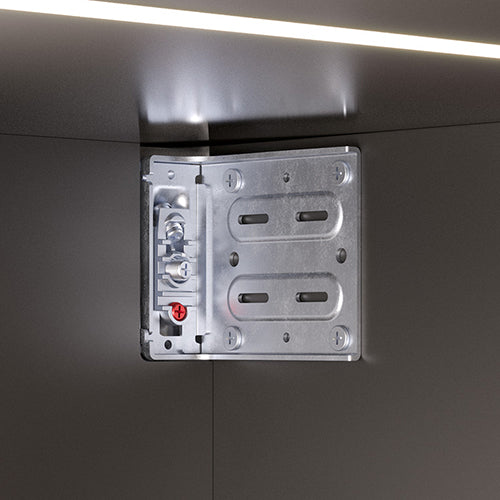

The Libra H11 is a versatile solution for suspended base units in furniture. With easy installation and slim side plates, it maximizes inner space. It includes an anti-turnover device and suggests using the integrated Libra WP13.

Detail:

Area of application For wall cabinet
Material Zink alloy, steel
Colour/finish Zinc-plated
Adjustment facility Vertical adjustment 12 mm
in-depth adjustment 10 mm
Anti-turnover locking

Set Comprises:

1 pcs 63425010ZN - Hanging bracket LIBRA H11 left

1 pcs 63425020ZN - Hanging bracket LIBRA H11 right

12 pcs 60507030ZN - Euro screw pan head Ø5,9 L.14mm

1 pcs 63450180ZN - WP13 wall plate to be split in two pcs H39 L140 th.3mm

1 pcs 63490720AB - LIBRA H11 cover cap white right

1 pcs 63490710AB - LIBRA H11 cover cap white left

Download

INSTALLATION MANUAL

Video
