Cabinet hangers and wall plates ITALIANA Libta H6
Tax excluded.

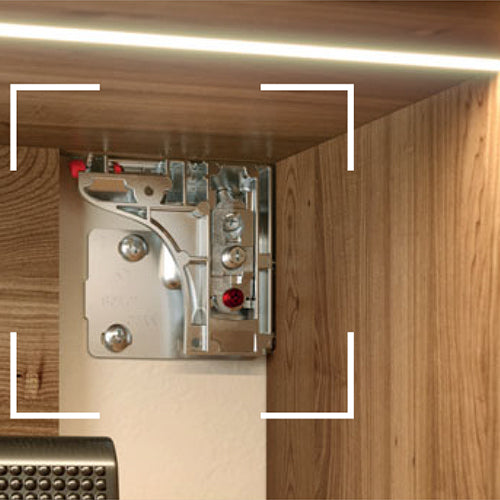

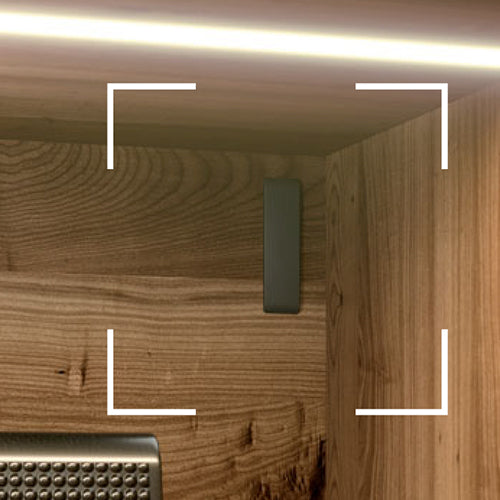

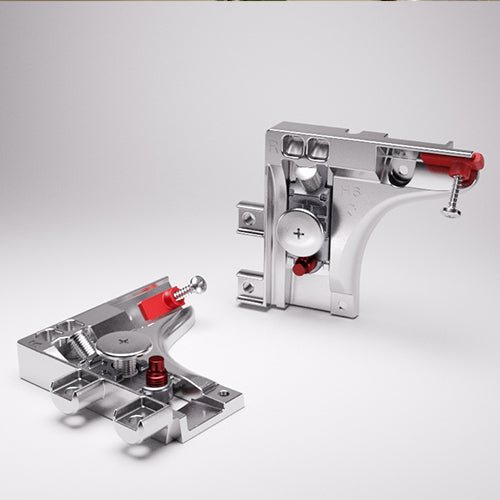

LIBRA hangers are installed behind the back panel with a small cover flap visible inside the cabinet, and are equipped with an anti-turnover device. The LIBRA H6 hanger is particularly strong and reliable for suspended base units. The LIBRA family also includes wall plates and bars made of thick, hardened steel, with holes for easy adjustment and stress reduction. Overall, LIBRA hangers provide independent vertical and horizontal adjustments for easier and more efficient cabinet adjustments.
Detail:
- Area of application For wall cabinet
- Load capacity 100 Kg per piece
- Material Zink alloy, steel
- Colour/finish Zinc-plated
- Adjustment facility Vertical adjustment 13 mm
- in-depth adjustment 12 mm
- Anti-turnover locking
Set Comprises:
1 pcs 63420500ZN - LIBRA H6 hanger pins Ø15 right
1 pcs 63420510ZN - LIBRA H6 hanger pins Ø15 left Zk
1 pcs 63450050ZN - WP5 wall plate to be split in two pcs Zk
1 pcs 63463010AB - Oval cover cap CC2 f.LIBRA Ø30 plastic White
Technical Sheet:
