Concealed shelf support Shelving System ITALIANA Triade

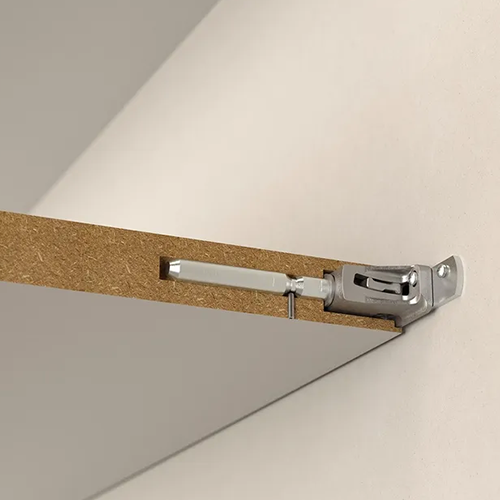

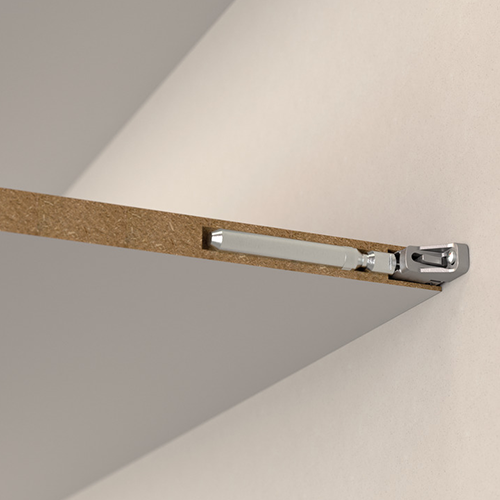

The Triade shelving system by ITALIANA offers concealed support for an elegant and modern look. Constructed with the highest quality materials, this system provides sturdy and functional shelving for any space. With the Triade system, clutter is a thing of the past.

Detail:

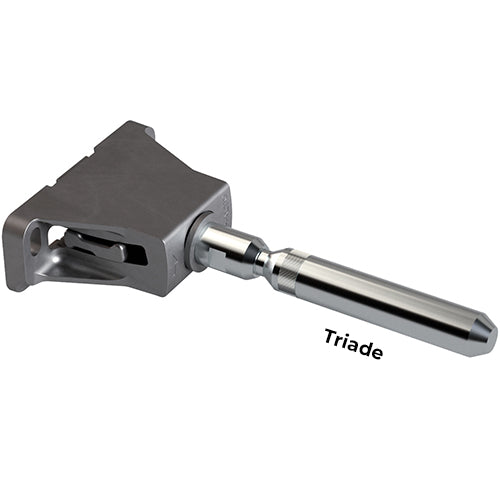

Triade

• Adjustment facility: Tilt adjustment: -6° to +13° via S2 mm Allen keySide adjustment: +/-2 mmHeight adjustment: +/-1 mm via slots on screw in plate"

• For shelf thickness: 30-40mm
• Length: 150mm
• Height: 22.8mm
• Colour/finish: zinc plated
• Product Material: Steel and Zink Alloy
• For shelf depth: 130mm - 300mm
• Load bearing capacity per pair: 15kg
• Note on load bearing capacity: 15 per pair for shelf 300mm deep

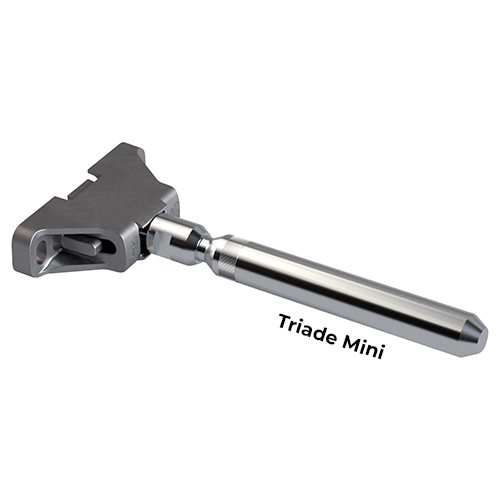

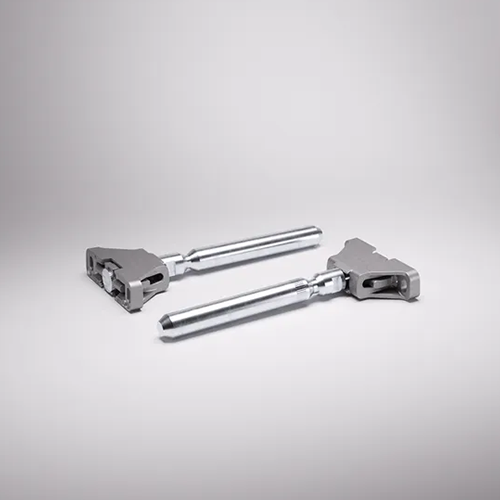

Triade Mini

• Adjustment facility: Tilt adjustment: -6° to +13° via S2 mm Allen keySide adjustment: +/-2 mmHeight adjustment: +/-1 mm via slots on screw in plate"

• For shelf thickness: 25mm
• Length: 150mm
• Height: 18mm
• Colour/finish: zinc plated
• Product Material: Steel and Zink Alloy
• For shelf depth: 160-200mm
• Load bearing capacity per pair: 4,5kg
• Note on load bearing capacity: 4,5 per pair for shelf 200mm deep

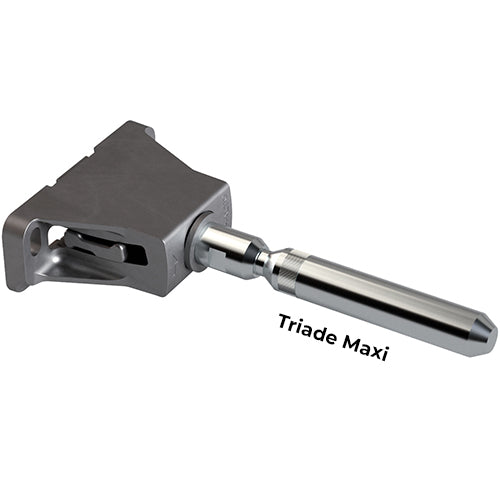

Triade Maxi

• Adjustment facility: Tilt adjustment: -8° to +20° via S2 mm Allen keySide adjustment: +/-2 mmHeight adjustment: +/-1 mm via slots on screw in plate"

• For shelf thickness: 40mm
• Length: 150mm
• Height: 28,5mm
• Colour/finish: zinc plated
• Product Material: Steel and Zink Alloy
• For shelf depth: 200-400mm
• Load bearing capacity per pair: 20kg
• Note on load bearing capacity: 20 per pair for shelf 300mm deep

Technical Sheet:
